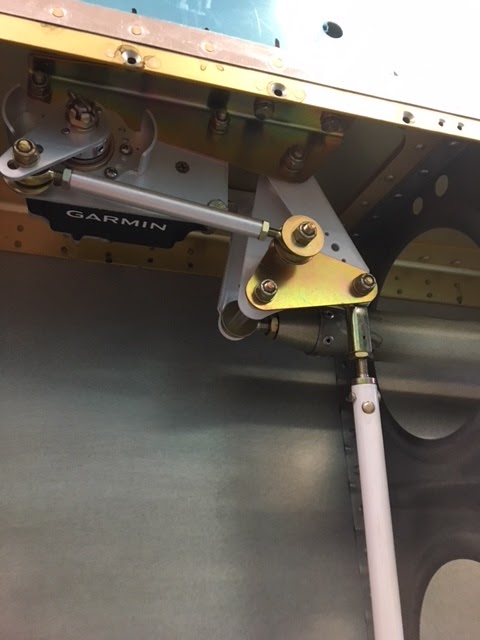

It is the little things that take the time, but these little things seem to be less stressful. Let me explain. I was stressing about finishing up the trailing edge of the flaps. So stressed that I went ahead and installed the Garmin autopilot roll servo while I worked up the nerve.
I originally laid out the wiring to have the roll servo in the left wing. Then I read the instructions and realized it goes in the right wing. So I redid my wing wiring diagram and followed directions for the installation.
Today I got up the nerve to tackle the trailing edge riveting. I had prosealed the trailing edge last week and left it clecoed to the building table to dry. When I pried it loose from the table this morning, I was surprised that the trailing edge was dead straight. I could not see any warpage at all. Amazing considering this thing is, like, seven feet long. OMG.

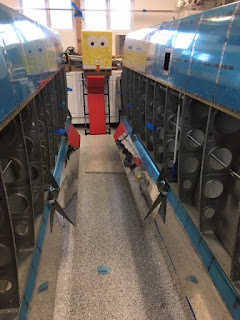

The riveting was non eventful although I did deviate from the instructions a little. The instructions say to do the bottom of the trailing edge rivets half way and then flip the flap over and do the rivets the rest of the way from the top side. But with the flaps, the flap attachment brackets stick down and I felt it would be nearly impossible to keep the flap flat and true. So I did all the rivet setting from the bottom making sure to keep the flap absolutely flat throughout the process. In a little over an hour, both flaps were done. Easy peasy. Installing them was straight forward as Sponge Bob watched.
I riveted the aileron push rods, but I think it is best to weld these per the optional note on the plans. The rivets near the aileron side come very close to interfering with the spar hole. At the extreme travel, I could see where this could cause some binding. These rods will be modified and welded while the wings are in storage.
Below are my bushings and top bolt lengths, for reference. A lot of fiddling, but nothing too difficult or confusing. I measured the travel at 19 degrees down and 31 degrees up. This should be sufficient.
Here is my build table for the flaps and ailerons. Not sure if I am going to give this away or re-purpose it for a fuselage cart.
